Portable Particle Counter

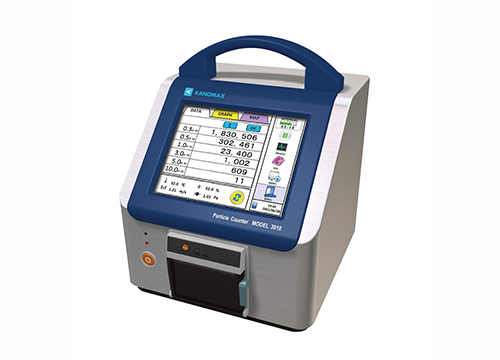

Kanomax Portable Particle Counters – Models 3905 and 3910 are the smallest 6-channel portable particle counters in the industry. They measure particles at 1.0 CFM (28.3 LPM) and 1.77 CFM (50 LPM), respectively. Both models feature 0.3-micron minimum sensitivity, large color touch screens with a streamlined and user-friendly interface programmed with different standards to help guide users through the measuring and certification process.

An optional Climomaster hot-wire environmental sensor is available. It provides the ability to measure air velocity, temperature and humidity, making the 3900 Series Portable Particle Counters the ultimate tools for cleanroom certification.

  • 0.3 µm, 0.5 µm, 1.0 µm, 3.0 µm, 5.0µm, 10.0µm
  • 28.3 lpm (1.0 cfm) or 50 lpm (1.77 cfm) flow rate speeds the sampling process
  • Simultaneously measures and displays up to 6 particle sizes from 0.3 to 10 microns
  • Fully compliant with ISO 21501-4 calibration standard
  • Enables you to certify cleanrooms up to ISO Class 2
  • 50LPM and 1 CFM flow rate respectively and a 0.3micron sensitivity.
  • Upload from blueprint your cleanroom layout
  • Optional CLIMOMASTER environmental sensor provides the ability to measure air velocity, temperature and humidity making these instruments the ultimate tools for cleanroom certification.
  • Intuitive ICON-driven screens and menus are easy to learn and simple to use
  • NIST TRACEABLE CALIBRATION Certificate* comes standard
  • 3910/3905 can store up to 10,000 records of particle count data from up to 6 particle channels and the configurable recipe database can store up to 50 recipes for sampling and reports.
  • All data can be quickly and reliably transferred to a computer, a Facility Monitoring System or Building Automation System.
  • Secure data transfer to a USB Flash Drive
  • 21 CFR Part 11 compliant with IQ/OQ documentation available
  • Built-in printer and onboard datalogging (up to 10,000 records) is standard on both 3910 /3905
  • Flexible communication with these instruments is made possible by the integrated Ethernet, RS-485, USB and Flash Drive memory card interfaces
  • Monitor and verify cleanrooms to meet ISO 14644: 2015 cleanroom classification
  • Monitor surgical rooms
  • Filter testing
  • IAQ investigation
  • Data center cleaning
